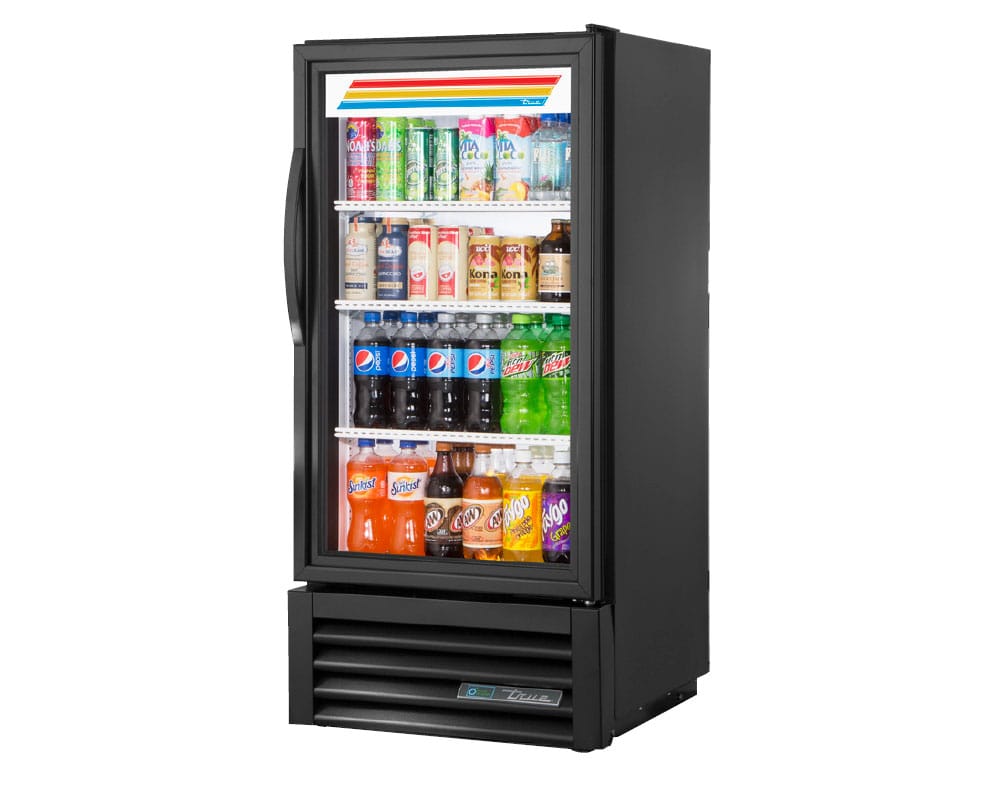

True Glass Door Merchandiser

Key Benefits

• Efficient cooling with lower utility costs for high-impact food and beverage displays.
• Designed for convenient access, fast service, and visual appeal.
• Energy-efficient operation with environmentally responsible refrigerant.

Refrigeration System

• Factory-engineered, self-contained capillary tube system with R290 hydrocarbon refrigerant:
  • Zero ozone depletion potential (ODP).
  • Global warming potential (GWP) of three (3).
• High-capacity, factory-balanced system maintains cabinet temperatures between 33°F and 38°F (0.5°C to 3.3°C).
• Electronically commutated evaporator and condenser fan motors for:
  • Higher peak efficiency.
  • Consistent airflow and reduced heat output.
  • Lower energy consumption and enhanced motor reliability.

Cabinet Construction

• Exterior: Durable, non-peel, chip-resistant black powder-coated cold rolled steel.
• Interior: NSF-approved white aluminum liner with stainless steel floor.
• High-density polyurethane insulation with zero ODP and GWP for energy efficiency.
• Cabinet includes 2 1/2″ (64 mm) legs for stability.
• Variety of door sign decal options available.

Door Features

• “Low-E” double-pane thermal insulated glass door with mitered plastic channel frame for enhanced energy efficiency.
• 12″ (305 mm) extruded handle for comfortable access.
• Self-closing door with positive seal and torsion-type closure system.
• Magnetic door gasket, one-piece construction, removable without tools for easy maintenance.
